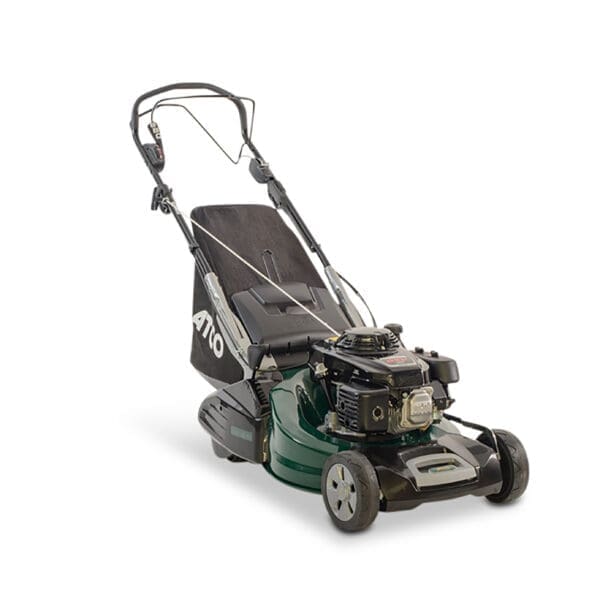

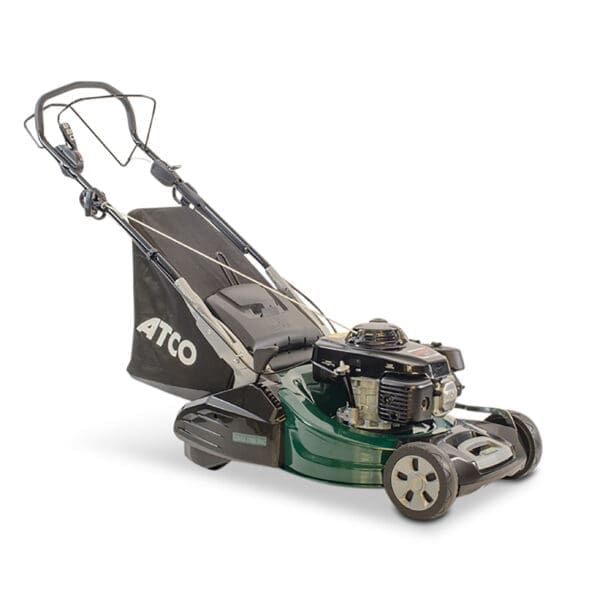

ATCO Liner 22SH BBC Lawn Mower

£1,189.00 £874.17 GBP exc VAT
Internal stock no. 294569337/AT8

Key Features

  • Honda GXV160 Series 163cc Engine
  • Full Width Rear Roller with Front Anti-Scalping Plate
  • Self Propelled
  • Blade Brake Clutch (BBC)
  • 53cm (21″) Cutting Width
  • Patented Twinclip Blade
  • Ideal for Large Lawns
  • 5 Year Warranty* (Terms & Conditions Apply)

£874.17 GBP exc VAT

1 in stock


Top of the range Liner 22SH BBC is aimed at the more discerning domestic gardener. Equipped with a multitude of features, this model is designed to make the job of large-scale lawn-maintenance more of a pleasure than a chore!

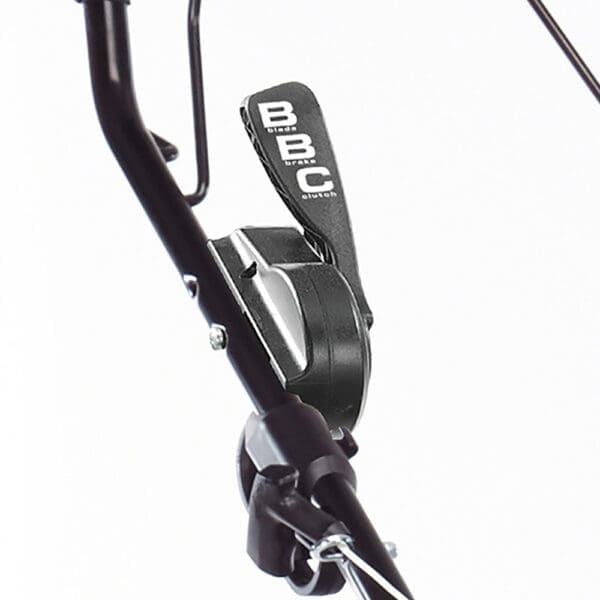

First and foremost amongst the many features of this model is the Blade Brake Clutch (BBC); an attractive attribute that makes it possible to disengage the blade drive without stopping the engine - emptying the grass bag and crossing non grass areas will prove fast, safe and hassle-free.

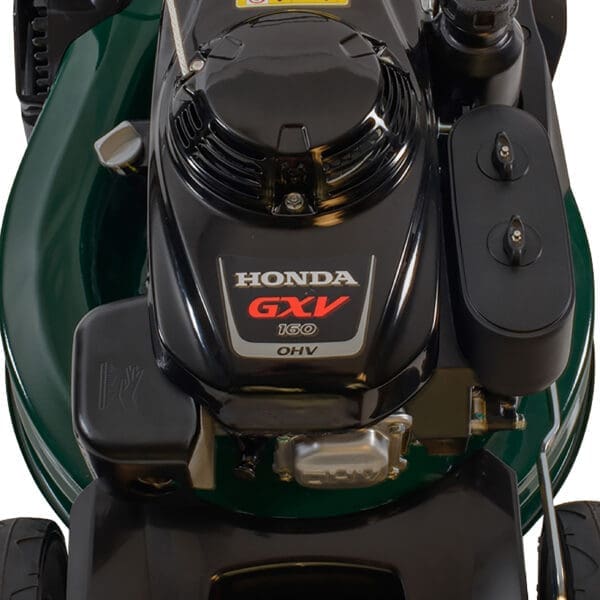

The Liner 22SH BBC employs a 163cc Honda GXV160 air-cooled four-stroke engine with an OHV configuration that delivers a substantial reduction in fuel consumption, vibration, noise and emissions.
Powerful self-propulsion means you’ll have no trouble operating on slopes or rough, tough patches of grass; while engine RPM adjustment works with ATCO’s provision of eight preset cutting heights to facilitate the management of varying grass conditions. Equipped with a front skid-plate and combining one of the lowest minimum height of cut setting (13mm) with a patent-pending Twinclip blade, the Liner 22SH BBC is capable of producing the sort of neat finish normally only achievable with cylinder-mowers. Durability features on the stripe producing Liner 22SH BBC include a hybrid galvanised steel/aluminium cutter deck and ball-bearing mounts for the wheels and roller.

A good choice for areas up to 3000m2, this highly productive machine has a sizeable 53cm cutting width and comes with a spacious 80-litre grass-collector.

  • Engine Brand Honda
  • Engine Type GXV 160 OHV
  • Starter Recoil
  • Engine Capacity 163 cc
  • Max Engine speed 2800 rpm
  • Net Power Output 2.8Kw
  • Engine Cooling Air
  • Power Source Petrol 4-Stroke
  • Driving Self-propelled
  • Traction Rear-roller drive
  • Collector Capacity 80 L
  • Cutting Width 53cm
  • Cutting Height Range 13 – 65 mm
  • Cutting Height Positions 8 Positions
  • Cutting Height Adjustment Centralised
  • Collector Type Textile
  • Fuel Tank Capacity 1.8 Litres
  • Deck Material Galvanized Steel
  • Handlebar Type Ergonomic 25 mm adj. by button + soft grip
  • Wheels Front wheels / Rear roller
  • Front Handle Yes
  • Adjustable Handlebar Yes
  • Foldable Handlebar Yes

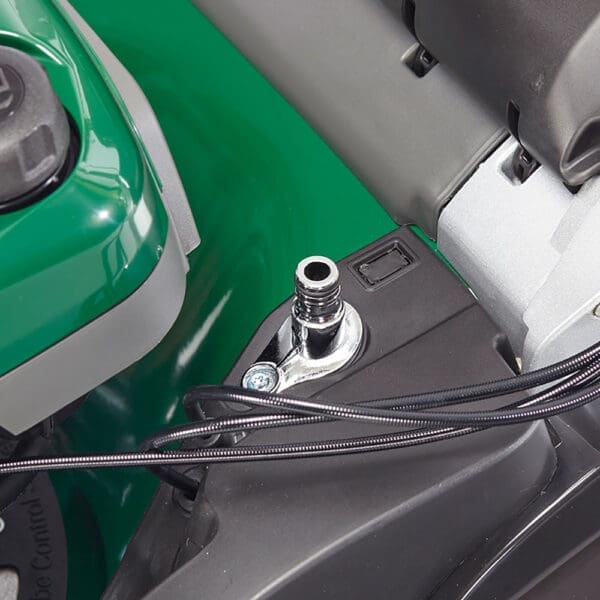

  • Washing Link Yes
  • Warranty 5 years Extended (Terms & Conditions apply)
  • Measured sound pressure level at operator ear dB(A) 86
  • Product Length 1680mm
  • Product Width 560mm
  • Product Height 1100mm
  • Weight 55kg
